VKNTECH V662 GOODYEAR 9007 CONTITECH 662N Bus Air Springs FIRESTONE
W01-095-0021 1R 1D355 355 BPW02.2002.46.00
Wholesale air suspension bellow Firestone air spring W01-095-0207 /
rubber air shock absorber springs 662N for MAN Truck/ DAF /
NeoplanAir sp

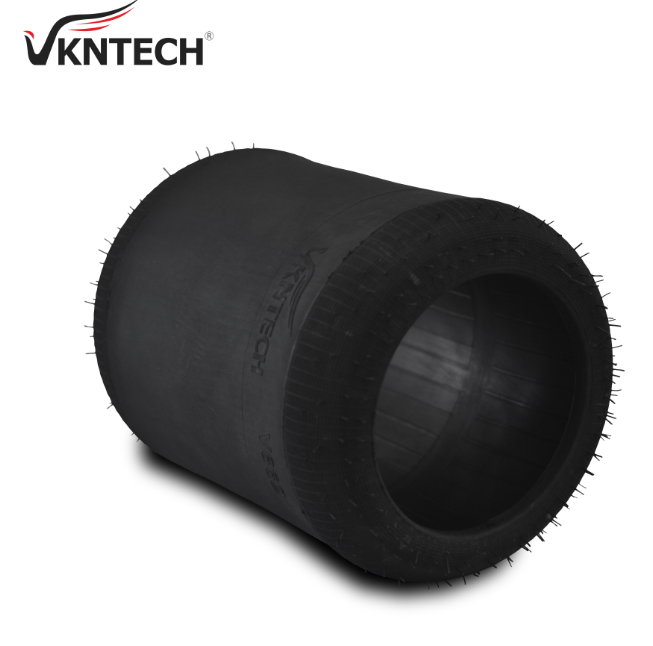

This is an OE quality, direct replacement for the Air Spring Bellow
Type Contitech 662N Firestone W01-095-0021 1R1A 390 310
Technical Data
Assembly weight 2,5 kg
Loading capacity at pressure = 5 bar 32 kN
Loading capacity at pressure pü max. = 5 bar 32 kN
Loading capacity at pressure pü min. = 1bar 6.3 kN
Deflection (Height min.) *180 mm
Deflection (Height max.) *445 mm
Measurement d max. 365 mm
Space required (dR) 390 mm
Design height (h) *310 mm
Natural frequency *1.05 Hz Piston volume *6.4 dm³
Air spring is a rubber and fabric bladder that holds air pressure
to support a load and isolate passengers and cargo from the shock
of motion caused by road irregularities.
As the air pressure increases, the air spring can support more load
while the spring
rate increases.The larger the air spring, the greater the maximum
load it can support.
| VKNTECH NUMBER | V662 |
| OEM NUMBERS | VDL/DAF 0578361, NEOPLAN 1001 12 251, VAN HOOL 624319-610, Goodyear
9007, Firestone W01-095-0021, MAN 81.43601.0018, Contitech
662N,NEOPLAN 1001 12 251,VAN HOOL 624319-610,Goodyear
9007,Firestone W01-095-0021,MAN 81.43601.0018,Contitech 662N
|
| WORKING TEMPERATURE | -40°C bis +70°C |
KEY FEATURES OF Viking AIR SPRINGS | - Easy to identify part number permanently engraved on the rubber.
- 4.00-5.00mm trick rubber that exceeds OEM requirements.
- OE standard
- Stronger fabric-cord.
- Rubber has high durable, tensile strength and elastic property . |
