Brand Name : | VKNTECH |
Certification : | IATF16949/ISO9000 |
Supply Ability : | 2000000pcs/Year |
Price : | $1.00 - $25.00/Pieces |
Model Number : | 2B 7897 |
Payment Terms : | L/C, T/T, Western Union |
Double Convoluted Air Spring/Air Suspension W01-358-7897/FD200-23A 709
OEM NUMBERS
Contitech | FD200-23A 708 | HENDRICKSON | S23114 |
Firestone | W01-358-7897 | HENDRICKSON | 002878 |

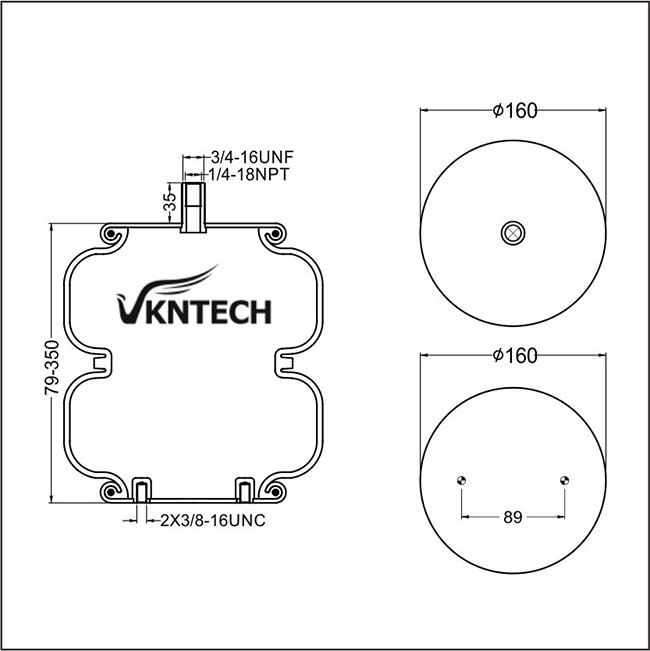

PRODUCT DRAWING
DESCRIPTION
ENVIRONMENT Some products such as acids or hydrocarbons may cause problems to the air bellows. The resistance of air bellows depends on
the compound. Epichlorohydrin, for the instance, is the best with hydrocarbons. A special treatments is available to increase the resistance against ozone and U.V. In any case, please contact our technical sales department.
Rubber Air Springs are perfectly suited for source isolation of High Speed Presses, Forging Hammers, Stamping Presses, Turret Punching Machines, Vibration Welders, Shakers, Engine Dynamometers Test Stands, and other machines and assemblies with highly dynamic disturbance forces. Also provides passive isolation for measuring and testing machines.
Rubber Air Springs are used for the highly effective isolation of machines, instruments, and assemblies from shocks, vibrations, and structure borne noise. The air spring is made of a bell shaped rubber form made from high grade rubber in addition to having a reinforced sidewall. The constructive design achieves excellent isolation properties in addition to maintaining very high mechanical stability. Furthermore, it is virtually impossible for damage due occur to overload or a sudden pressure drop.
![]() |
