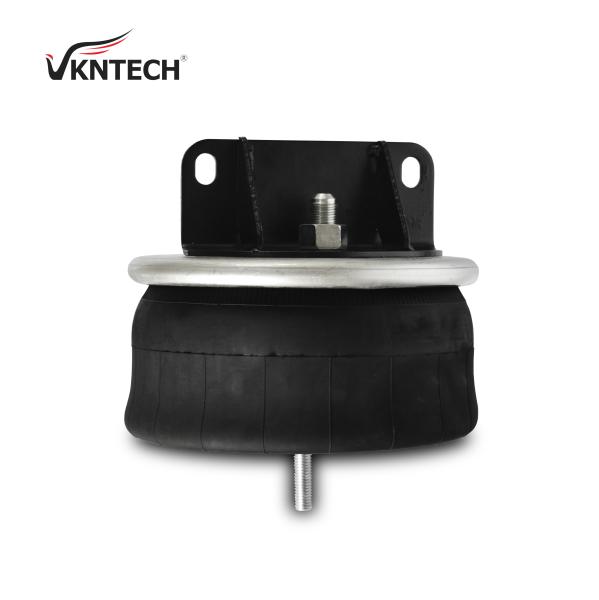

    1R11-219 Goodyear , W01-358-9617 For Firestone Air Spring For American Truck Air Spring Contitech 9 9-9 P 860 Kenworth K

    Ask Lasest Price
    Brand Name : VKNTECH
    Certification : IATF16949/ISO9000
    Supply Ability : 2000000pcs/Year
    Price : $1.00 - $50.00/Pieces
    Model Number : 1k9617
    • Product Details
    • Company Profile

    1R11-219 Goodyear , W01-358-9617 For Firestone Air Spring For American Truck Air Spring Contitech 9 9-9 P 860 Kenworth K

    1R11-219 Goodyear , W01-358-9617 For Firestone Air Spring For American Truck Air Spring Contitech 9 9-9 P 860 Kenworth K


    OEM Reference


    Goodyear1R11-219-PlasticKenworthK-303-18
    FirestoneW01-358-9617
    Dayton452-9617
    Automann1DK20G-9617
    TRPAS96170
    Contitech9 9-9 P 860

    Product Drawing


    1R11-219 Goodyear , W01-358-9617 For Firestone Air Spring For American Truck Air Spring Contitech 9 9-9 P 860 Kenworth K


    Technical Data


    Air Spring Compressed Height3.9 in.
    Air Spring Type1T Reversible Sleeve
    Diameter9.12 in.
    Maximum Height11 in.
    Piston Height2.8 in.
    Bead Plate Top Diameter9 in.
    Top Mountstud
    Bottom Stud Configuration1
    Bottom Mountstud
    Top Stud Configuration1
    Bead Plate Bottom Diameter8.18 in.
    ApplicationKenworth K-303-18 (Airglide200) - small air fitting - original design (1996 & 1997 prod.) -replaced by K -303-22(9622)
    Assembled Product Weight (lb)11.2
    Bellows1T15LA-(-1)
    Design Height (in.)5.5-6.25
    Loading Capacity at 20 psig1,320 lbsf
    Loading Capacity at 60 psig3,960 lbsf
    Loading Capacity at 90 psig5,940 lbsf
    Maximum Diameter11.7
    Maximum Rebound Height (in.)10.63
    Minimum Jounce Height (in.)3.75
    Natural FrequencyHz
    Operating Temperature (Deg C)57 to -54

    Features and Benefits


    Require little to no maintenance
    Pressure tested for quality assurance
    Increase towing and hauling capabilities
    Replace worn out oem air bags
    Increase life of other suspension components
    NO maintenance required – these air bags are true workhorses and do not require any upkeep after the initial installation
    Direct replacement from OEM air springs – no additional components required
    Great for extending the life of your suspension as a whole – torque air springs are the most conveinent and reliable solution
    Goodyear Bellows Number: 566-22-3-021
    Goodyear Part Number: 1R11-219
    Firestone Bellows Number: 1T15LA-1 or 1T15KW-1
    Firestone Part Number: W01-358-9617
    Replaces: Kenworth K-303-18 (Airglide 200) small air fitting, original design (1996 & 1997), replaced by K-303-22 (9622)

    Cross References: 8514, 1R11219, 1R11-219, 66112, 9 9-9 S 860, 99-9S860, 999S860, W01-358-9617, W013589617
    A cross reference listing means that this air bag may be a suitable replacement for the part numbers listed. Please double check the dimensions and location of mounting holes and stud to be sure the air bag will work in your application.
