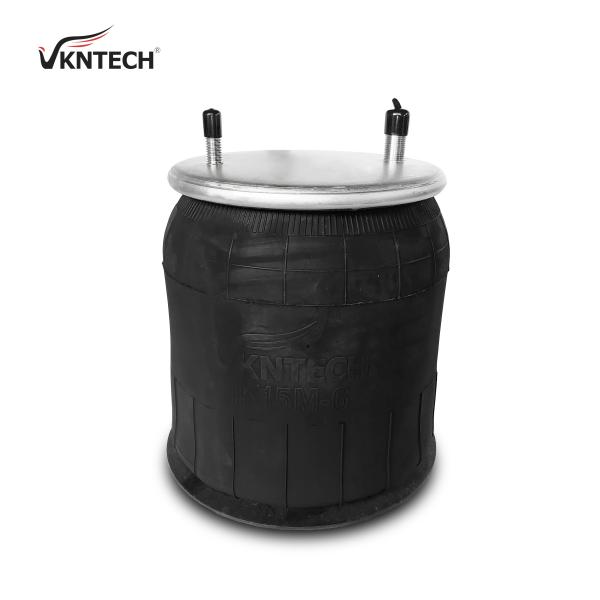

Quality Rubber Air Bag For Suspension Parts / W01-358-9466 Air
Suspension For Ford & Marmon Air Spring
OEM Numbers
| Contitech | 9 10-16 P 410 | DAYTON | 3529466 |
| Firestone | W01-358-9466 | HENDRICKSON | 49048 |
| 1T15M-6 | 49674-1&2 |
| Goodyear | 1R12-365 | 49207 |
| 1R12-197 | | 364QS28 |
| | | 574QL411M |
| | | TRIANGLE | 8410 |
Drawing
Technical data
| ir Spring Compressed Height | 8.1 in. |
| Air Spring Type | 1T Reversible Sleeve |
| Diameter | 10.12 in. |
| Maximum Height | 20 in. |
| Piston Height | 4.88 in. |
| Bead Plate Top Diameter | 9 in. |
| Top Mount | stud |
| Bottom Stud Configuration | 2 |
| Bottom Mount | stud |
| Top Stud Configuration | 2 |
| Bead Plate Bottom Diameter | 10 in. |
| Application | Hendrickson 49048 (Ford), Hendrickson 49674-1&2 ()(57QL411M),
Hendrickson 49207 (Marmon)HA-360/400/460 [up to 1991] |
| Assembled Product Weight (lb) | 14.3 |
| Bellows | 1T15M-6 |
| Design Height (in.) | 10.5-11.5 |
| Loading Capacity at 20 psig | 1,566 lbsf |
| Loading Capacity at 60 psig | 4,698 lbsf |
| Loading Capacity at 90 psig | 7,047 lbsf |
| Maximum Diameter | 12.7 |
| Maximum Rebound Height (in.) | 19.61 |
| Minimum Jounce Height (in.) | 8 |
| Natural Frequency | Hz |
| Operating Temperature (Deg C) | 57 to -54 |
PRODUCT DETAILS
- Special Notes
- none
- Product Description
- Manufacturer: Spring Pro
- Spring Pro Bellows Number: 889466
- Goodyear Bellows Number: 566-24-3-038
- Goodyear Part Number: 1R12-365
- Firestone Bellows Number: 1T15MT-6
- Firestone Part Number: W01-358-9466
Replaces: Hendrickson 49048 (Ford), Hendrickson 49674-1 & 2 ()
57QL411M, Hendrickson 49207 (Marmon), HA-360/400/460 (up to 1991)
Cross References: E1R12173, 1T15MT6, 364SQ28, 566243074, 566243075,
8410, 49048, 49207, 49674, 352103, 1R12365, 1R12566243074,
1R12566243075, 566243074, 566243075, 1R12-365, 49048, 48674,
364SQ28, 57QL411M, 8410, 64276, 9 10-16 P 410, 910-16P410,
91016P410, W01-358-9466, W013589466
A cross reference listing means that this air bag may be a suitable
replacement for the part numbers listed. Please double check the
dimensions and location of mounting holes and stud to be sure the
air bag will work in your application.
