Brand Name : | VKNTECH |
Certification : | IATF16949/ISO9000 |
Supply Ability : | 2000000pcs/Year |
Price : | $1.00 - $50.00/Pieces |
Model Number : | 1K9083 |
W01-358-9083 Natural Rubber Air Bag Suspension Spring/ 1R12-066 Air Ride Suspension System Spare Parts Alloy Piston
OEM Numbers
Contitech | 9 10-16 P 333 | DAYTON | 352-9082 |
Firestone | W01-358-9083 1T15M-6 | FAB TEK | 101828 |
Goodyear | 1R12-066 | GRANNING | 1359 |
HENDRICKSON TRAILER | S1561 | ||
LOAD GUARD | SC2036 | ||
RIDEWELL | 1003589083C | ||
TAURUS | AS506-9080 | ||
WATSON & CHALIN | AS-0028 |

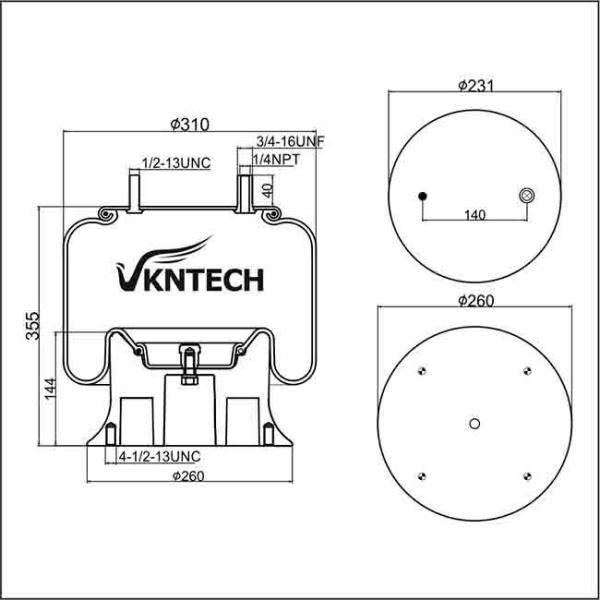

Product Drawing
Technical Data
Order Number: | W01-358-9083 |
Bellows #: | 1T15M-6 |
Assembly Weight: | 13.2 lbs |
Design Height: | 12-14.5 inches |
Minimum Jounce Height: | 6.7 inches |
Maximum Rebound Height: | 20.3 inches |
Loading Capacity at 20 psig: | 1,420 lbsf |
Loading Capacity at 60 psig: | 4,260 lbsf |
Loading Capacity at 90 psig: | 6,390 lbsf |
Natural Frequency: | Hz |
Maximum Diameter: | 12.7 inches |
Material Type: | Natural Rubber |
Operating Temperature: | 57Cº to-54Cº |
COMMON APPLICATIONS FOR AIR BAGS
Primary Trailer Suspension Air Springs provide outstanding cargo
protection while reducing maintenance problems caused by road shock
and 'trailer hop' when empty. Trailers last longer and can be used
to haul a wider variety of cargo, reducing expensive empty trailer
miles.
Lift Axle Air Springs allow you to lift the axle without ever
leaving the cab. Saves tire wear under empty or partial load
conditions and lets you negotiate tight corners with spread
tandems.
Drive Axle Air Springs substantially improve the ride and handling
of the tractor, resulting in greater driver comfort and safety,
less tractor maintenance, longer tire wear and higher trade-in
value. They require little maintenance and last more than twice as
long as steel springs.
Front Axle Air Springs significantly improve steering and handling
while improving tire wear and reducing problems caused by cab
vibration.
Cab Mount Air Springs eliminate most problems experienced with
standard cab mounts and help reduce damaging cab vibration.
Seat Air Springs increase driver comfort and help alleviate
hazardous driver fatigue.
![]() |
