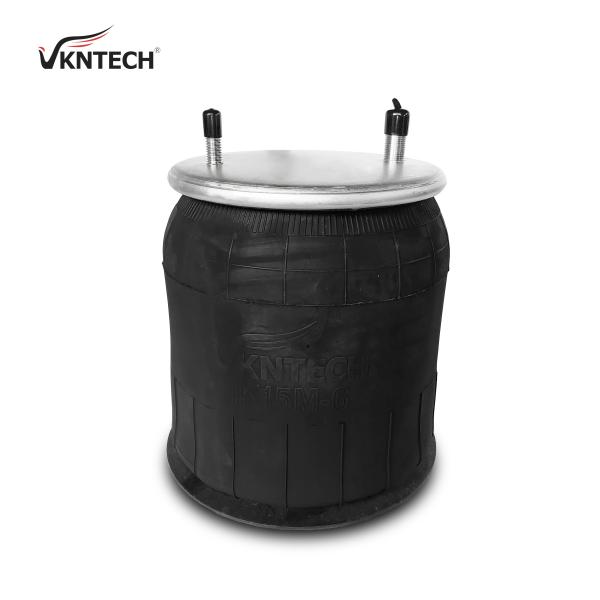

DANTON 3529422 HENDRICKSON 49048 TRAILER AIR SPRING REPLACE FOR
1R12-365 W01-358-9466 1T15M-6 VKNTECH 1K9466
OEM Numbers
| VKNTECH NUMBER | 1K9466 |
| OEM NUMBERS | DAYTON
3529466 HENDRICKSON
49048
49674-1&2
49207
364QS28
574QL411M
TRIANGLE
8410 Contitech
9 10-16 P 410 Firestone
W01-358-9466
1T15M-6 Goodyear
1R12-365
1R12-197 |
| WORKING TEMPERATURE | -40°C bis +70°C |
KEY FEATURES OF Viking AIR SPRINGS | - Easy to identify part number permanently engraved on the rubber.
- 4.00-5.00mm trick rubber that exceeds OEM requirements.
- OE standard
- Stronger fabric-cord.
- Rubber has high durable, tensile strength and elastic property . |
PRODUCT DETAILS
- Special Notes
- none
- Product Description
- Manufacturer: Spring Pro
- Spring Pro Bellows Number: 889466
- Goodyear Bellows Number: 566-24-3-038
- Goodyear Part Number: 1R12-365
- Firestone Bellows Number: 1T15MT-6
- Firestone Part Number: W01-358-9466
Replaces: Hendrickson 49048 (Ford), Hendrickson 49674-1 & 2 ()
57QL411M, Hendrickson 49207 (Marmon), HA-360/400/460 (up to 1991)
Cross References: E1R12173, 1T15MT6, 364SQ28, 566243074, 566243075,
8410, 49048, 49207, 49674, 352103, 1R12365, 1R12566243074,
1R12566243075, 566243074, 566243075, 1R12-365, 49048, 48674,
364SQ28, 57QL411M, 8410, 64276, 9 10-16 P 410, 910-16P410,
91016P410, W01-358-9466, W013589466
Technical data
ir Spring Compressed Height 8.1 in.
Air Spring Type 1T Reversible Sleeve
Diameter 10.12 in.
Maximum Height 20 in.
Piston Height 4.88 in.
Bead Plate Top Diameter 9 in.
Top Mount stud
Bottom Stud Configuration 2
Bottom Mount stud
Top Stud Configuration 2
Bead Plate Bottom Diameter 10 in.
Application Hendrickson 49048 (Ford), Hendrickson 49674-1&2
()(57QL411M), Hendrickson 49207 (Marmon)HA-360/400/460 [up to 1991]
Assembled Product Weight (lb) 14.3
Bellows 1T15M-6
Design Height (in.) 10.5-11.5
Loading Capacity at 20 psig 1,566 lbsf
Loading Capacity at 60 psig 4,698 lbsf
Loading Capacity at 90 psig 7,047 lbsf
Maximum Diameter 12.7
Maximum Rebound Height (in.) 19.61
Minimum Jounce Height (in.) 8
Natural Frequency Hz
Operating Temperature (Deg C) 57 to -54
Drawing
