    PETERBILT 03-07887 Trailer Air Springs Replace For Firestone W01-358-8852 Goodyear 1R12-568 VKNTECH 1K8852

    Ask Lasest Price
    Brand Name : VKNTECH
    Model Number : 1K8852
    Certification : IATF16949/ISO9000
    Price : $1.00 - $50.00
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 2000000pcs/Year
    Delivery Time : 2-8 working days
    • Product Details
    • Company Profile

    PETERBILT 03-07887 Trailer Air Springs Replace For Firestone W01-358-8852 Goodyear 1R12-568 VKNTECH 1K8852


    trailer air spring PETERBILT 03-07887 replace for Firestone W01-358-8852 Air Spring Goodyear 1R12-568 VKNTECH 1K8852



    Oem Numbers


    VKNTECH NUMBER1K8852
    OEM NUMBERS
    Contitech9 10-19 P 472PETERBILT03-07887
    FirestoneW01-358-8852TRIANGLE8472
     1T15M-9
    Goodyear1R12-568
    WORKING TEMPERATURE-40°C bis +70°C
    FAILURE TESTING≥3 millions

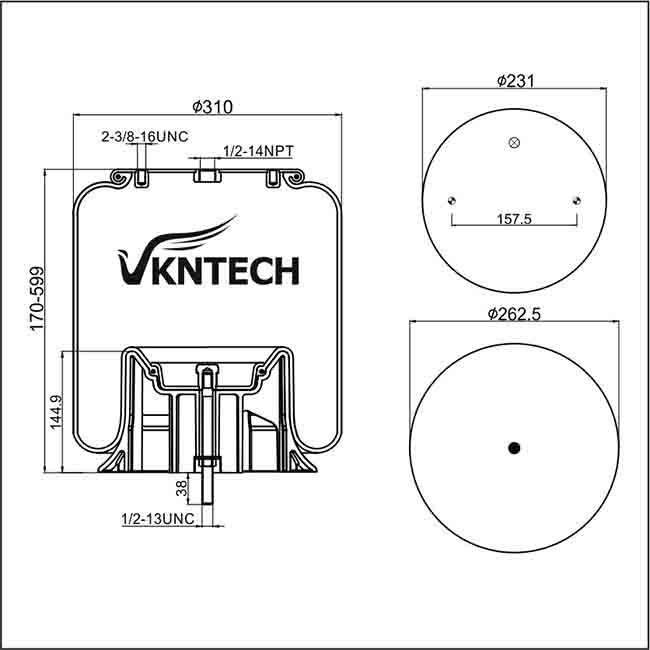

    Product Drawing


    PETERBILT 03-07887 Trailer Air Springs Replace For Firestone W01-358-8852 Goodyear 1R12-568 VKNTECH 1K8852


    Tecnical Data


    Air Spring Air Fitting SizeCombination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T. ; Air inlet 1/2 N.P.T.
    Air Spring Compressed Height6.7 in.
    Air Spring # of Lobes1 Solid Sleeve
    Air Spring Type1T - Reversible Sleeve
    Bead Plate (Top) & Deflated Bellows O.D.9 and 10.12 in.
    Bead Plate (Top) Mounting Bolts Dimension Center to Center6.20 in.
    Diameter10.12 in.
    Extended Height Deflated23.5 in.
    Finished Weight13.2 lbs
    Piston Height5.6 in.
    Bead Plate Top Diameter9 in.
    Bead Plate Bottom Diameter10.25 in.
    ApplicationPeterbilt 03-07887 (Low Air Leaf)
    Assembled Product Weight (lb)13.2
    Bellows1T15M-9
    Bottom Bead Plate Hardware KeyBold or Stud 1/2-13
    Design Height (in.)15-17
    Loading Capacity at 20 psig1,440 lbsf
    Loading Capacity at 60 psig4,320 lbsf
    Loading Capacity at 90 psig6,480 lbsf
    Maximum Diameter12.7
    Maximum Rebound Height (in.)22.86
    Minimum Jounce Height (in.)6.7
    Natural FrequencyHz
    Operating Temperature (Deg C)57 to -54
    Top Bead Plate Hardware Key2 x Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons
